.: Photo Gallery

Thai-Fin Engineering & Consulting Co., Ltd photo gallery is collection of several projects pictures world wide.

When you click photos you can open it new window and see it bigger size.

  Wed end of paper machine

____________________________________________________________

.: April Riau Andalan pulp & paper

The Riau pulp and paper mill is located in Sumatra, Indonesia. The pulp mill has a capacity of two million tons a year, and the three pulp dryers have a total capacity of 1.4 million tons a year.

Wed end of paper machine

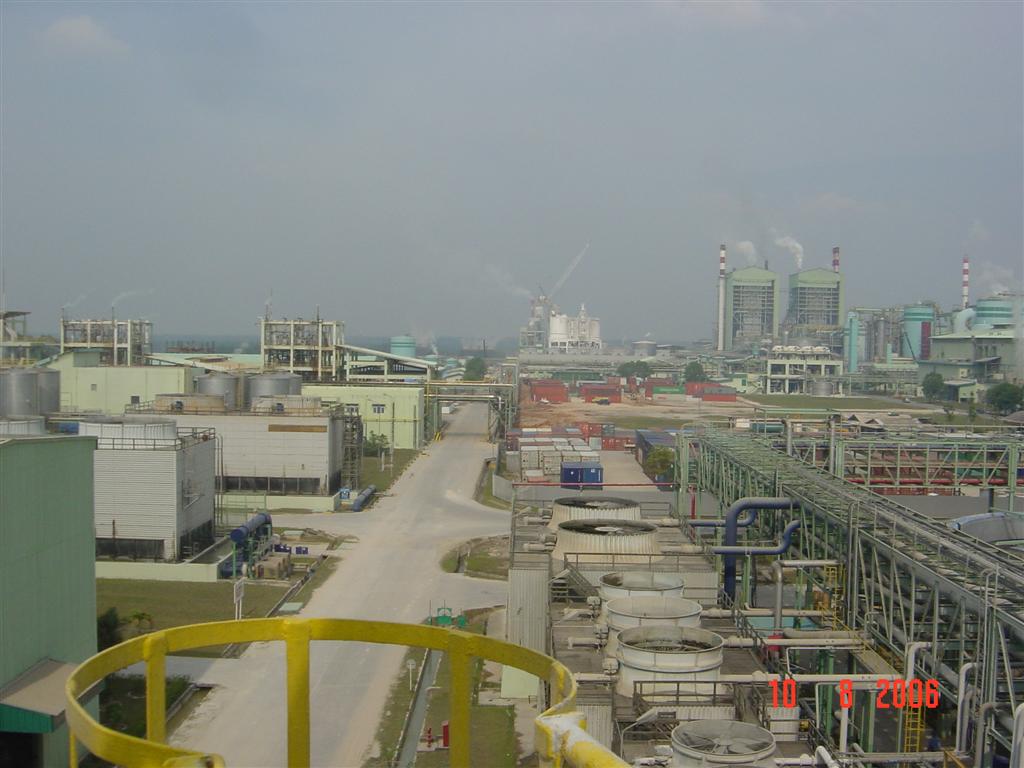

1. View from top on silos to the mill area. 2. One of the largest pulp mills in the world. 3. View from top on silos to the right side of mill area.

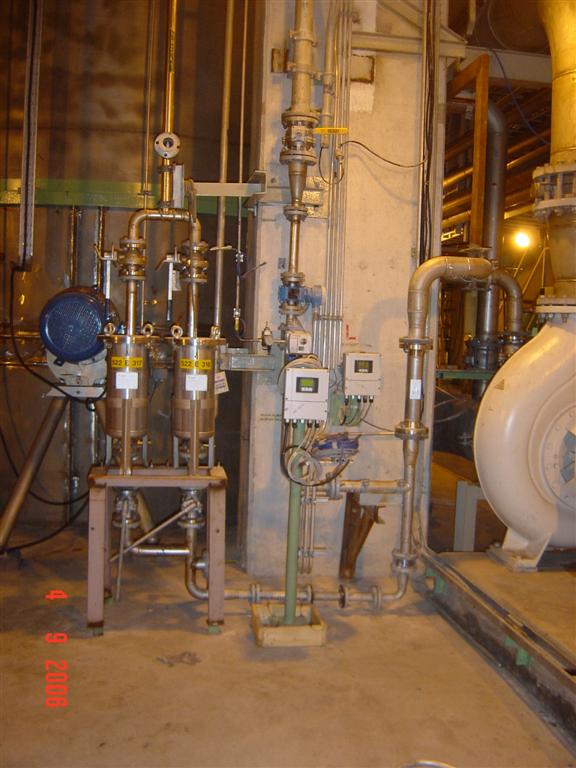

4. Cationic starch silos of Chemical preparation plant. 5. Dosing point of cationic starch 6. Before water run pump suction side to be clean

____________________________________________________________

.: Cheng Loong Corporation, Hou-li paper mill

Hou-li paper mill located in Taichung County Hou-Li Hsiang in middle of Taiwan. Cheng loong corporation establish 1971  the Houli factory and lay the foundations for paper manufacturing. There we was paper mill's effluent water treatment plant rebuild project. There was build new flobed bioreactor before secondary clarification basin.



1.Hou-li WWTP 2. Hou-li WWTP 3.
1. Basin of new bioreactor. 2. Existing secondary clarification basin. 3. Existing aeration basin.
4. 5. 6.

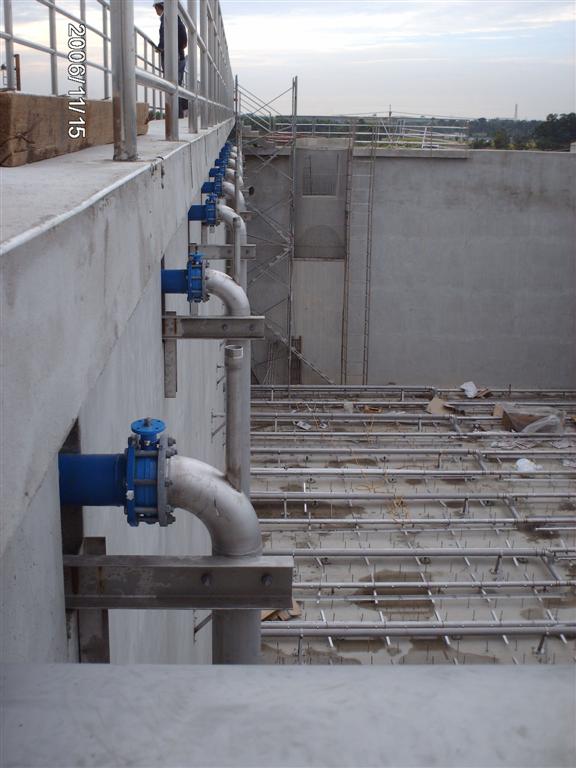

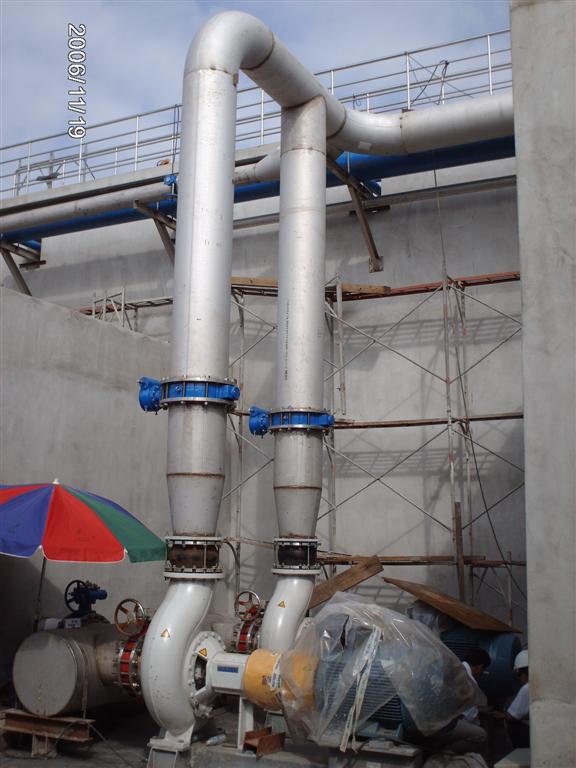

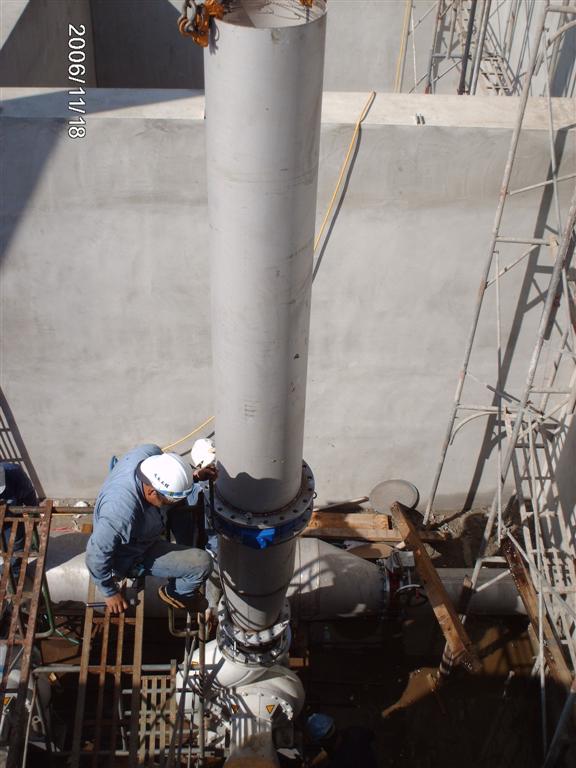

4. Aeration manifold pipes and conrol valves 5. Inlet pumping station installation 6. Inlet pumping station
7. 8. 9.

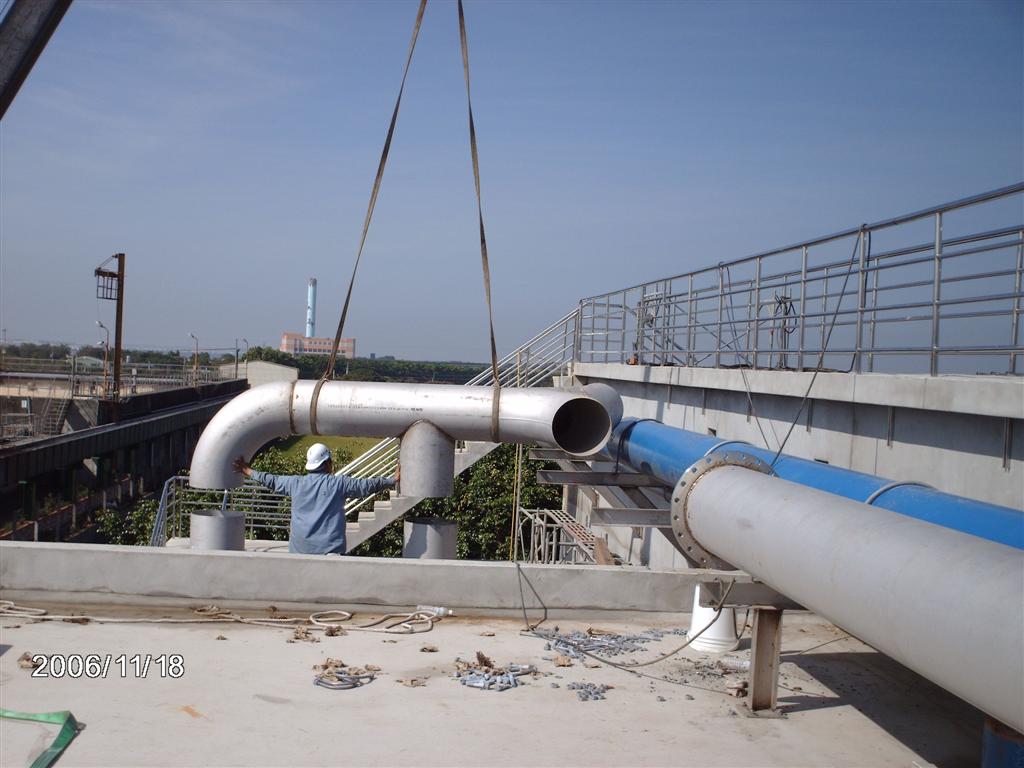

7. Inlet pumping station 8. Outlet pipe 99. Inlet pipe

____________________________________________________________

.: Jilin Chenming papers Co., Ltd.

Jilin Chenming Paper Co., Ltd. has started up their Metso Paper supplied PM 12 LWC/newsprint machine on 10 January 2007. The OptiConcept machine, which has a design speed of 1,600 m/min and a wire width of 6,950 mm, went on stream at a speed of 1,260 m/min, producing newsprint. On 20 March it started producing LWC with a speed of 1,200m/min.
The Metso delivery comprised a complete LWC/newsprint line from headbox to winder with stock preparation and chemical handling systems, including a wide scope of process, machine and quality control automation. Jilin Chenming aims to use the PM 12 mainly for LWC production, with an annual capacity exceeding 200,000 t/yr.



1. 2. 3.
1. dry end of new paper machine 2. Coating color kitchen storage silos 3. Coating mixer and manifold pipe
4. 5. 6.

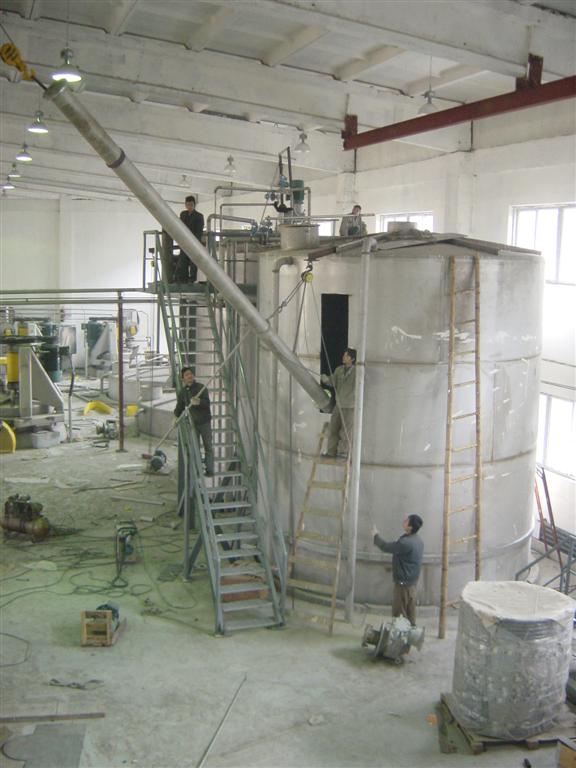

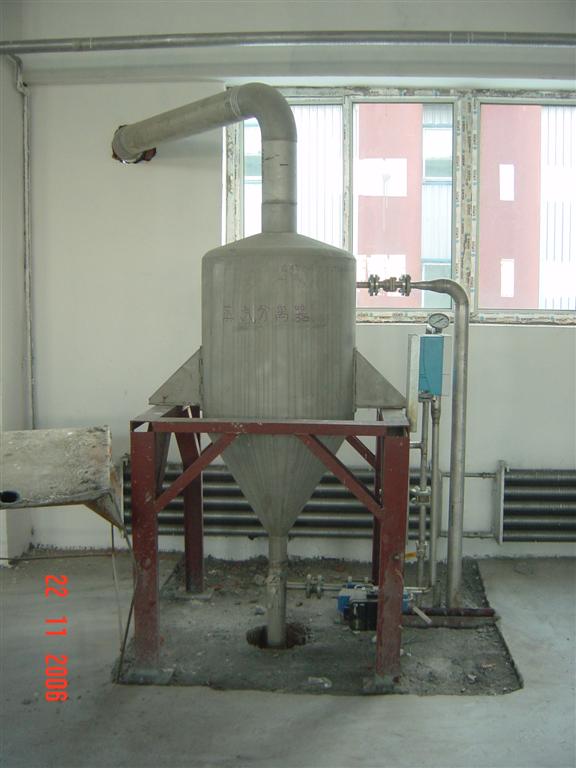

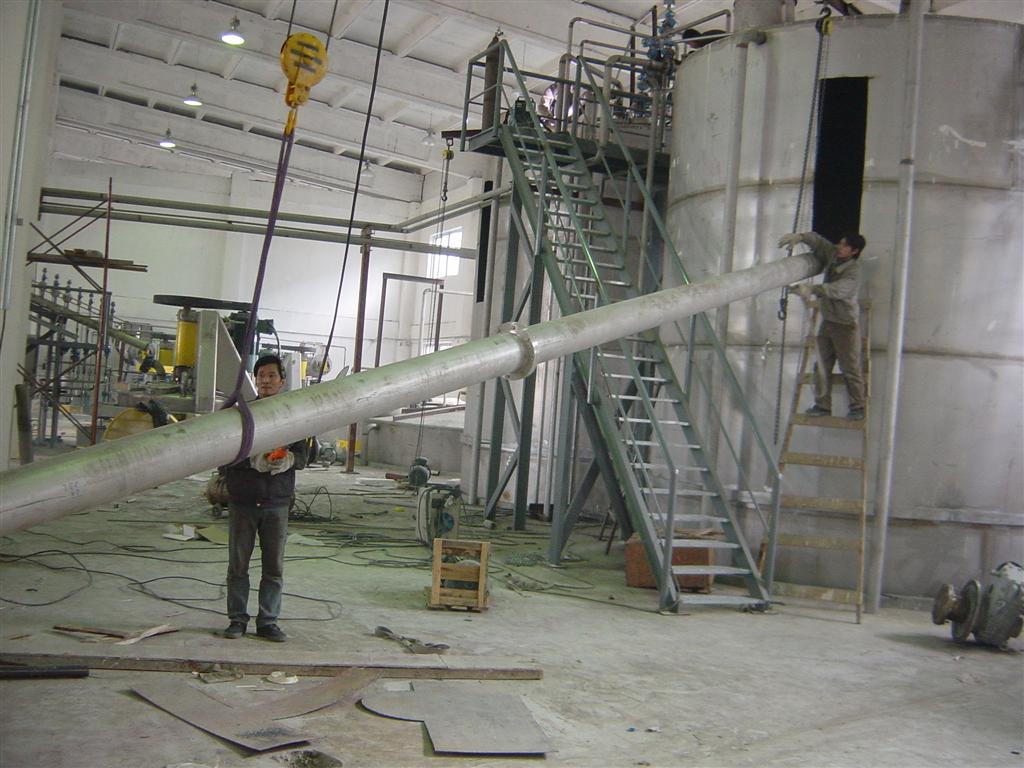

4. Installation of agitator shaft for clay tank 5. Old mill area. boiler house 6. steam ejector
7. 8. 9.

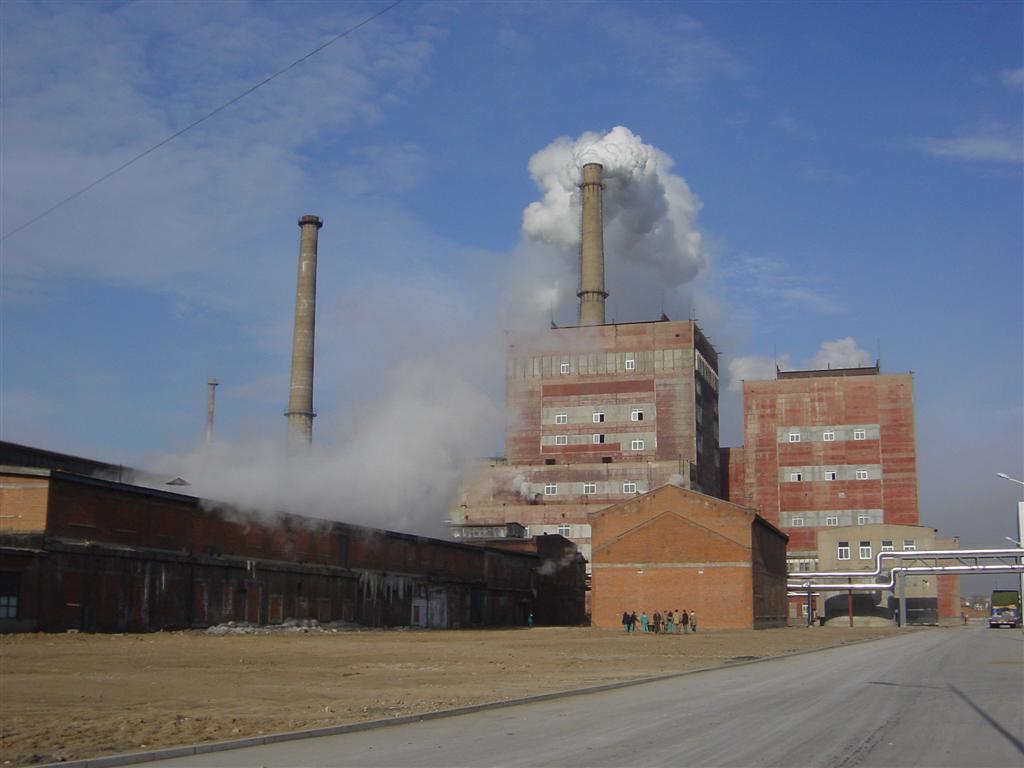

7.  Installation of agitator shaft for clay tank 8. Old mill area 9. Polymer unit after installation

____________________________________________________________

.: Kakolanmäki Wastewater Treatment Plant

Turun seudun puhdistamo Co., Ltd. is a wastewater treatment service provider owned by six municipalities. The purpose of the company is develop Turku’s Kakolanmäki Underground Wastewater Treatment Plant and its required transmission lines. Upon completion of the plant, the company shall oversee its operation and maintenance. The plant will process the wastewater for approximately 280,000 residents (survey year 2030).



12.
1. 2. 3.
1. Admin building 3D model 2. 3D model of all process areas 3. Primary clarified under construction
4. 5. 6.
4. Aeration basin tunnel 5. Installation of inlet pipe 6. Mining of ventilation pipe
7. 8. 9.
7.  Viewing places basement under construction 8. Return- and surplus sludge pipe 9. Inlet pipe tunnel
7. 7. 7.
10. Sludge storage silo's installation 11. Sand filtter piping 12. mould of basin wall

____________________________________________________________

.: Lining pumping stations wells

We design for Lining full series of 3D model plastic well pumping station and equipment wells



1. 2. 3.

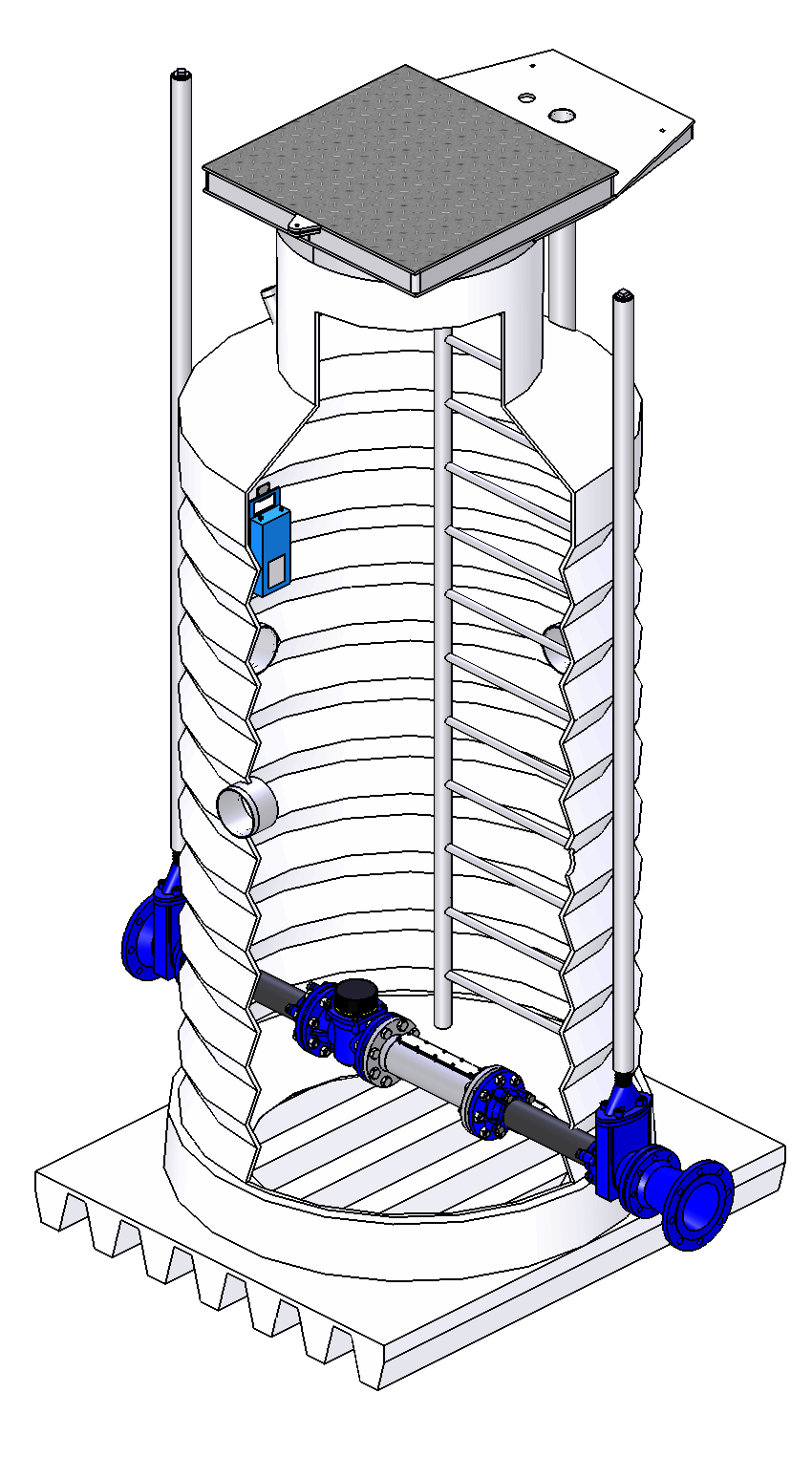

1. Multifunction well, flow and pressure measure module 2. Multifunction well, biofilm module 3. Multifunction well, cleaning and service module
4. 5. 6.

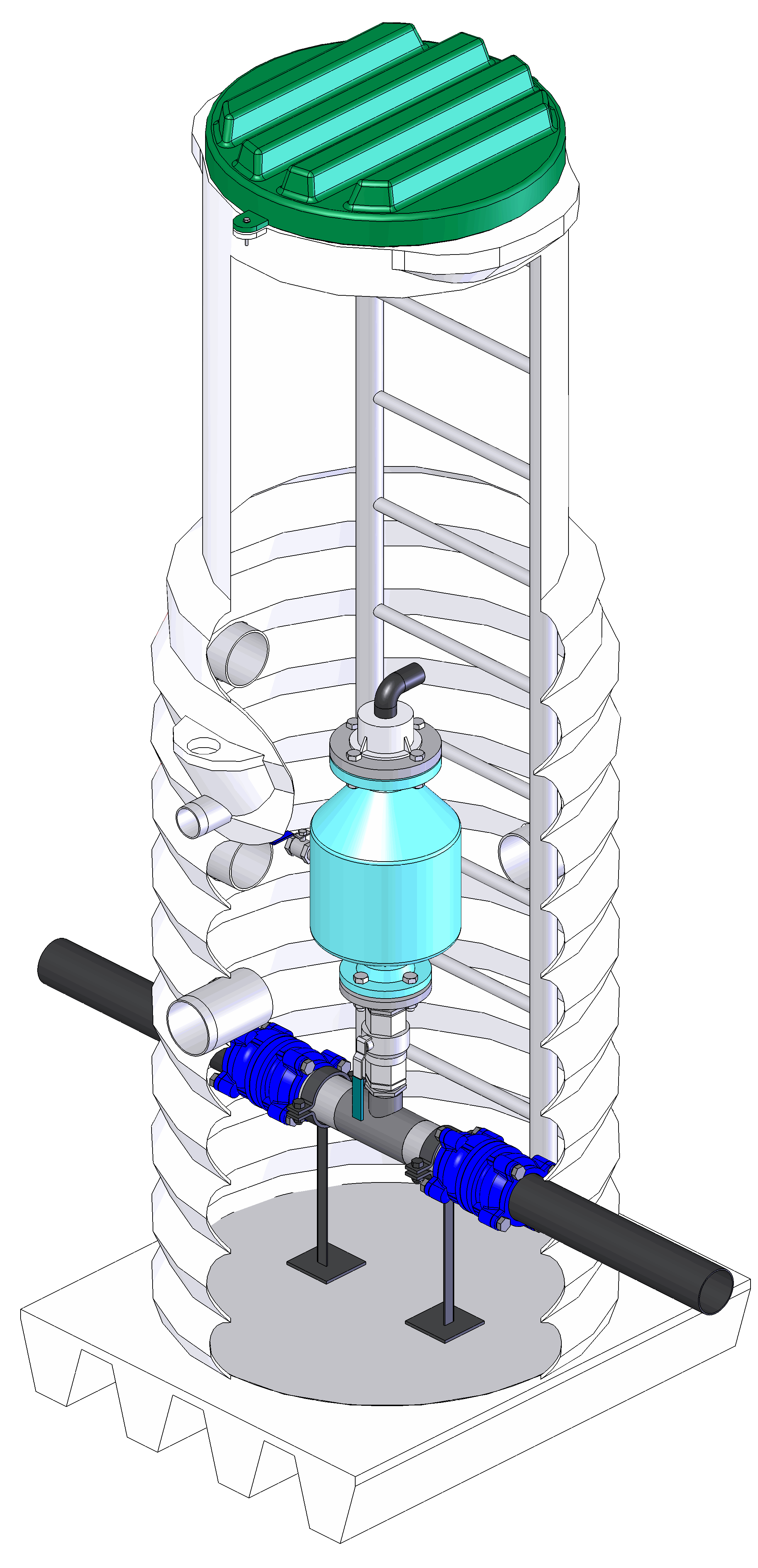

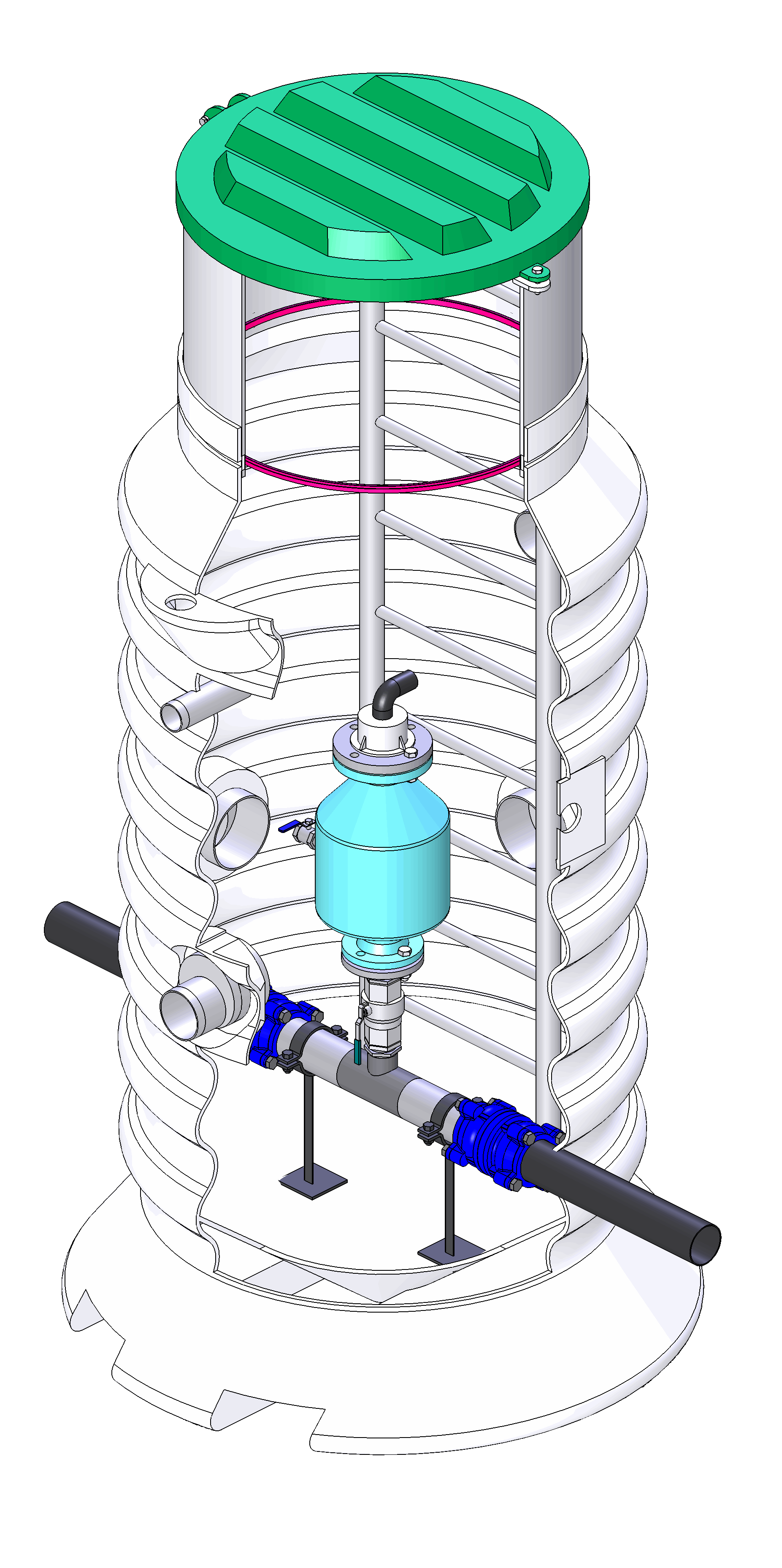

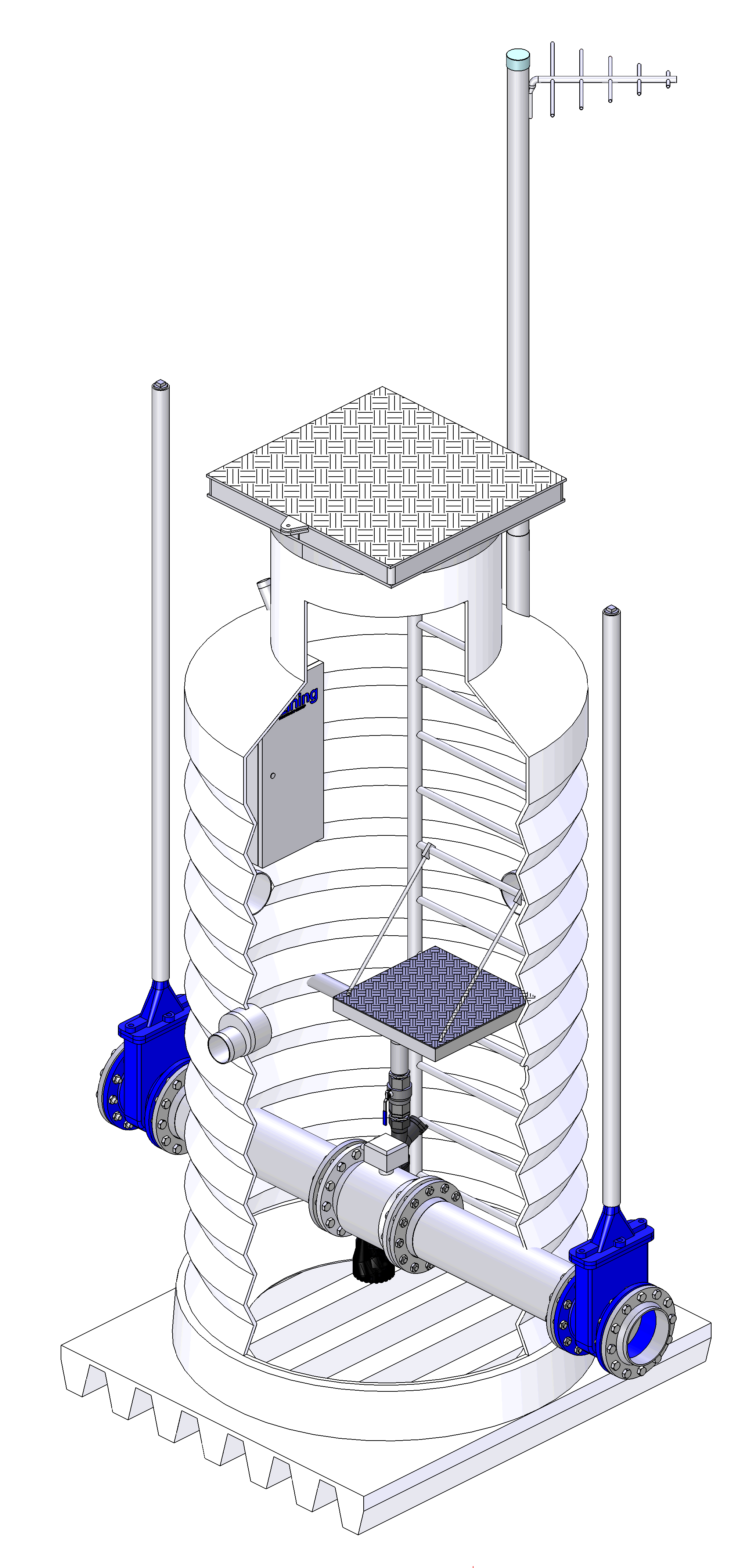

4. Air release well for waste water 5. Air release well for waste water 6. Air release well for drinking water
7.





8.

9.

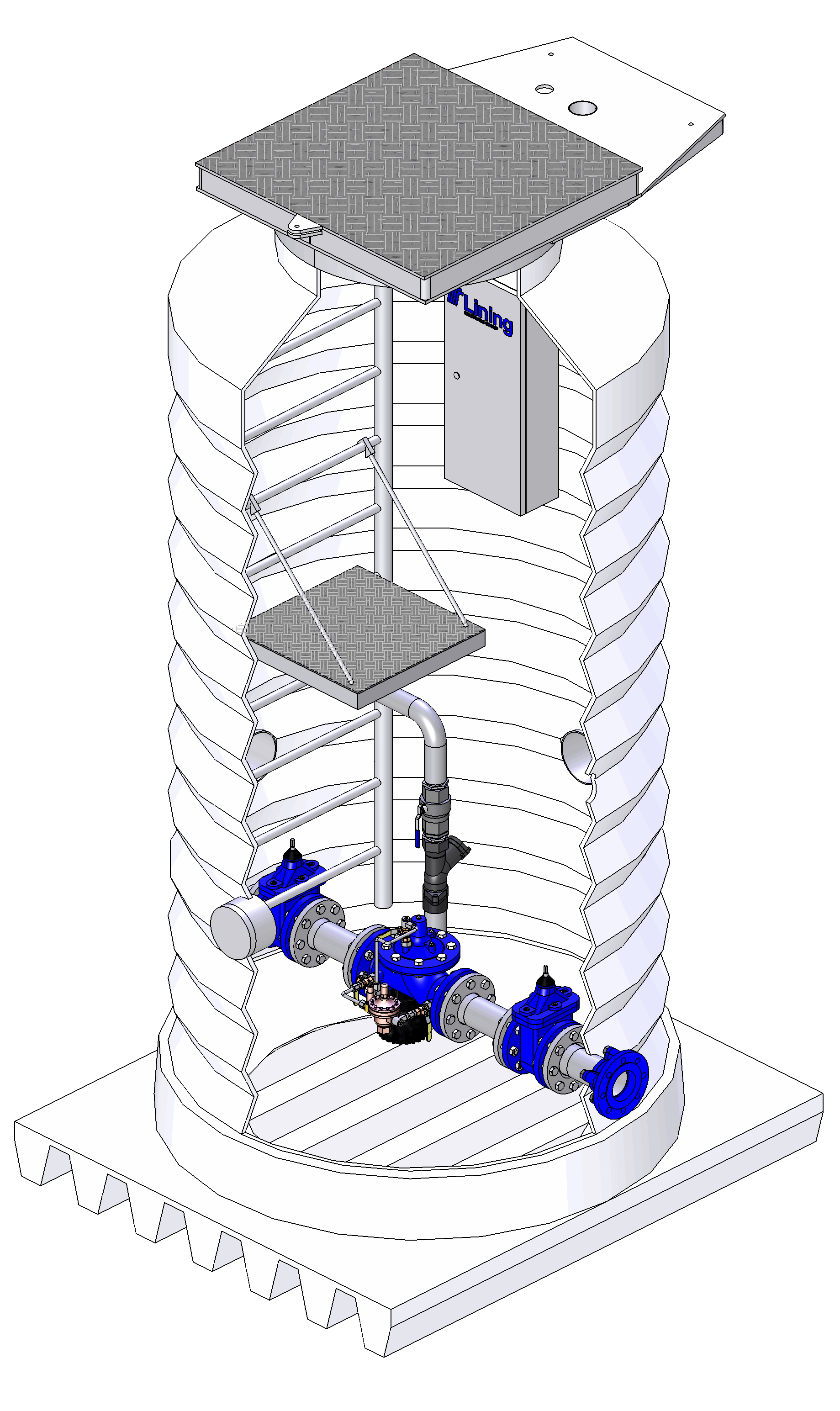

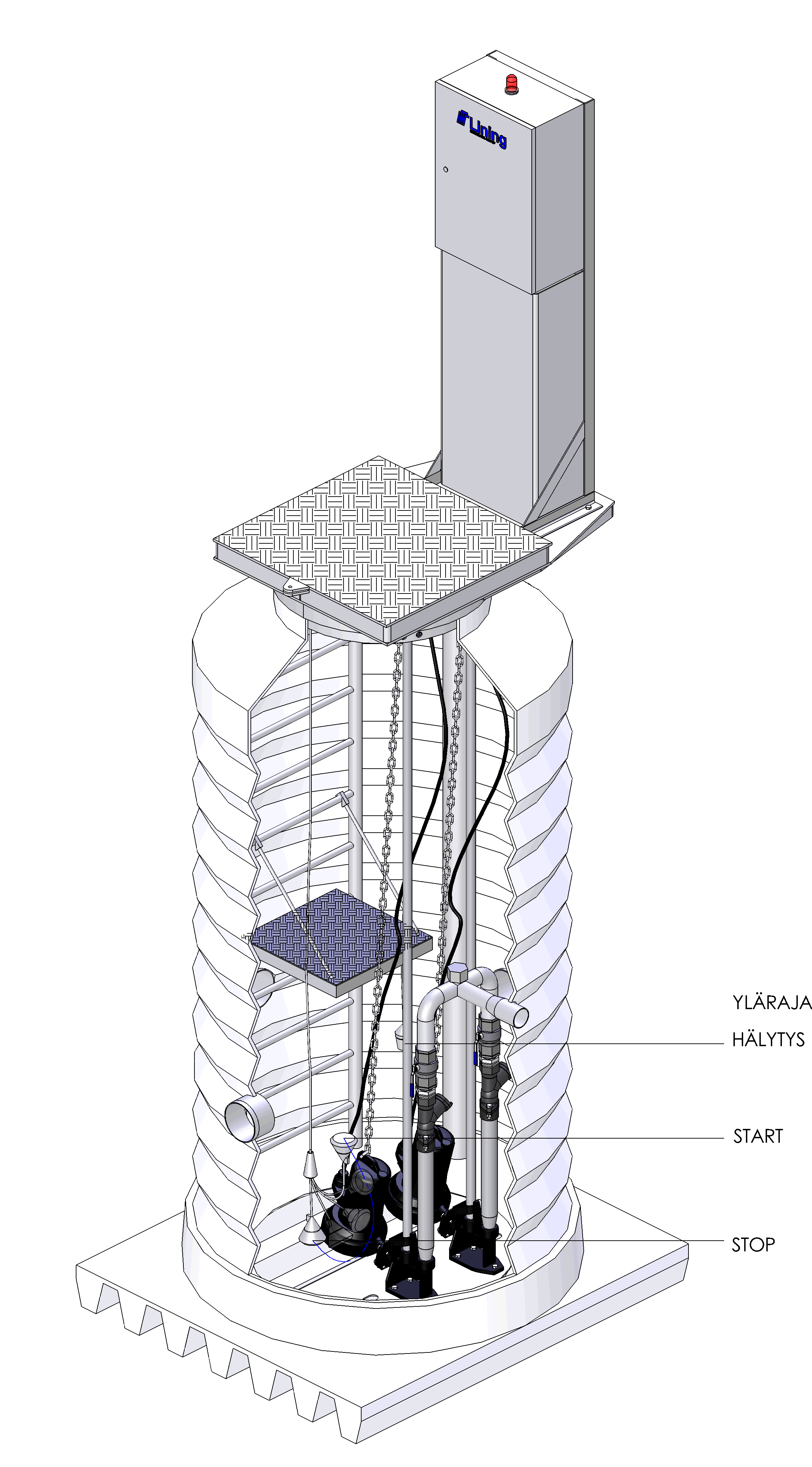

7.  Flow meter well 8. Pressure control valve well 9. Pumping station
7. 7.
10. Pumping station 11. Pumping station
